Controllers & Soft Processor Cores
32-bit Pipelined RISC Processor
Category Embedded processor
Language VHDL
Simulation Yes – with any HDL simulator
Synthesis Yes – For FPGA/ASIC
Target Applications Custom computing nodes
DSP on FPGA
Other Features 52-Instructions set
Fully tested & verified architecture
Verified on Xilinx FPGAs
Assembler support (will be supplied by us)
High speed MAC unit
For pricing and more details contact us at :
Real Time Clock:
Category Embedded processor
Language VHDL
Simulation Yes – with any HDL simulator
Synthesis Yes – For FPGA/ASIC
Target Applications ATM machines, Vending machines
For time stamping in RADAR and SONAR signal processing applications
Real time data loggers and recorder
Other Features The algorithms are written to consider all special conditions
Verified on Xilinx FPGAs
LCD interface (optional feature)
USB/UART interface (optional feature)
Counter/Timer bank with programmable interrupts (optional feature)
Board solution with necessary interface unit is also available
Brief Description:
This RTC core can be used in a wide variety of commercial applications such as for time stamping a particular transaction done by an ATM machine or vending machine. The RTC core also useful in applications like real time recorders with time stamping information, industrial machinery, and similar devices.

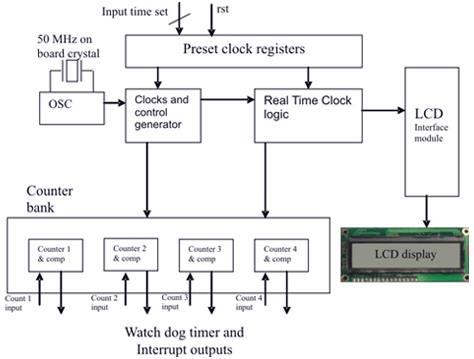

The following figure shows the block diagram of RTC with optional LCD interface and counter back features.
Figure1: High level block diagram of Real Time Clock and counter bank
For pricing and more details contact us at :
